1)Item Name:

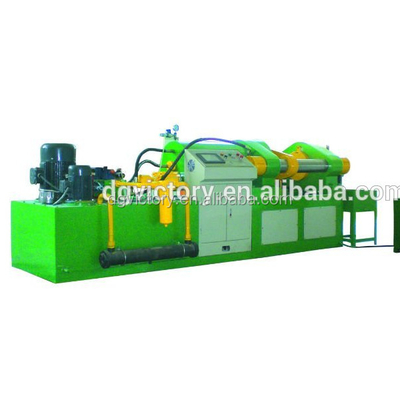

Solder bar /stick Extrusion PressVT-350T
Machine specification:
This item apply for tin based solder wire/bar/stick/anode extruding!
1.Main oil vat:Adopt plunger type cylinder(Germany technology).
2.Inside oil vat:Diameter 120mm,rated working pressure 21Mpa.With the advantage of quick oil
injecting to shorten the idle running time and enhance the productivity.
3.Hydraulic variable pump one set,hydraulic plunger pump one set.
4.Hydraulic valves:8pcs
5.Speed control valve:Adopt Rexroth technology variable valve control.
6.Motor:Adopt top brand China(Dong Guan Motor),two sets at:11KW-6&5.5KW-4.
7.Temperature control:Adopt Japan RKC temperature control system,for extruder head,front
crossbeam and flux tank three phases.
8.Flux tank:Adopt stainless steel,oil heating to enable the flux temperature invariableness.
With flux status checking window to assure it will be always in best status.
9.Extruder mould:Adopt heating processed rough model with special heat treatment.
10.Extruding billet size:diameter 85mm*200mm or 90mm*220mm.
11.Material feeding:Adopt hydraulic photoelectricity double assurance control.Fully
automatic control for the feeding process.
12.Electric equipment:Adopt Taiwan brand SHSI,Japan RKC,Schneider brand(simple switches
adopted China CHINT brand).
13.Current requirement:380V,50HZ(can make per customer's application for different country)
14.Machine weight:8T Total power: 20KW
Company Introduction:
Victory Technology International Ltd is a HK funded enterprise,which is engaged in designing
and manufacturing metallurgy and Mining equipment.
With 20 years manufacturing experience and mature technologies ,we have won several patents
and bloom to be one of the biggest equipment manufacturing bases in China.we have one set
scientific quality management system and strengthful R & D team support.
In order to provide our customers with satisfactary service and qualfied machines. we are
constantly absorbing advanced technology and workcraft from abroad to upgrade our
equipments.
Company business scopes:
Electronic Soldering Equipment:
solder wire making plant
Melting furnace,Auto billet Casting machine, Extruder, Rolling machine, solder wire
drawing machine,
Tin powder making plant
Secondary Melting furnace,Atomizing machine, tin Powder vibrating screen;
Solder Paste Equipments
Vacuum emulsifying machine, solder paste mixer, hydraulic discharge machine;
Pure zinc wire making plant:
Continuous melting and casting Furnace,Baking stove, single die drawing machine, zinc
wire rolling mill, zinc wire drawing machine,zinc wire take up machine,big bobbin winding
machine;
Special alloy wire processing equipments:
Silver wire traction machine, silver wire rolling mill, silver wire drawing machine,
horizontal take-up machine,Copper wire drawing and rolling machine,alloy wire Extrusion;
Vibrating screening equipment
Large scale square separator,Round sifters,water treatment separators;
Metallurgy, mining equipment
Rotary Blast hole Drill
Company Strength:
1.Victory Technology are specialized in equipment designing and manufacturing for about
twenty years.our equpiment scopes are:Electornic soldering equipment(complete plant for
solder powder making /solder paste making/solder wire making/solder bar making plant and
solder ball making) ,Pure zinc wire making plant and other special alloy wire making plant.
High yielding Tin Silver copper alloy wire drawing machine
2.As one of the pioneer in this industry,Victory Technology continues to renew and upgrade
the machining facilities and workcraft so as to ensure our customers with high quality
equipments.
3.Victory Technology are making every effort to combine customers' requirement with
modernized technologies to seek for perfect .
4.With an extremely strong integrate capacity ,Victory Technology keep offering most
suitable equipment to our customers.
5. Victory Technology adopt advanced manufacturing facilities to ensure a fast and exquisit
production,we have CNC machining centers ,shearing machine,NC laser cutting machine,NC
milling machine ,grinding machine, punching & bending facilities ect.
Vat diameter 450mm,rated working pressure 210Mpa.Hydraulic system adopts steady speed
structure to assure the extruding stability of the metal & flux flow.
Main Export Markets:
Why to choose Us:
Point 1:Strict Quality Control:
Point 2:Service:
Contact me for more details!
