Machine Name :

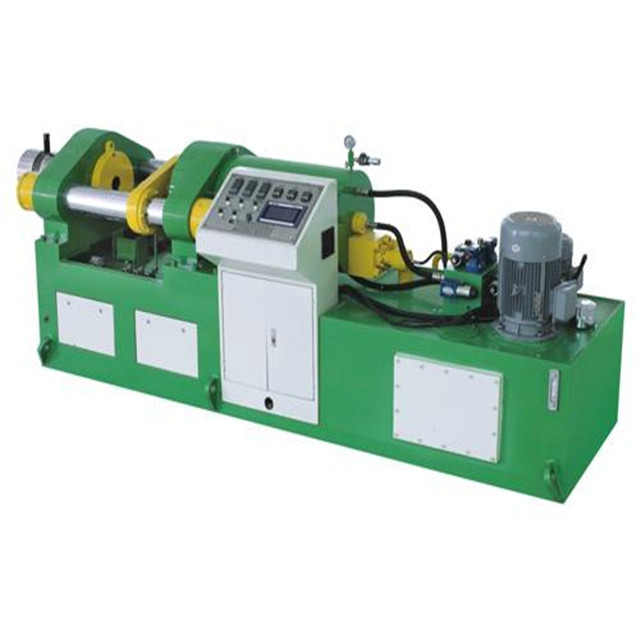

tin pipe extruder
Victory Technology International Ltd is a foreign enterprise , which is specialized in equipment manufacuture&devevelop for Non-ferrous metal processing ,such as tin ,lead ,zinc ,silver ,Nikel ,cadmium
We have been making experience and technologies for electronic solder equipment along with matrue solder product producting technologies and formula with more than 20 years history ,at the same time ,we have managed many many projects sucefully for the zinc wire plant , the lead wire /Pipe processing for bullet production , the silver nikel alloy wire ,silver cadmium alloy wire processing , the tin clad copper ,tin clad steel proceesing etc.
In 2004 , Our Victory Has been covering of 33,000-square-meter standard modernized factory building ,being the largest electronic solder machine production base in Southeast Asia.
During the developing, we have introduced advanced technology from the European ,Japan ,Tanwan, So as to improve our productors's performance , meanwhile ,we adopt original components during the manufacture process , which are not only approbated by many old customers ,but also won us more and more new&old customers ,with those advanges,our products have been selling well in the East&South Asian ,European, American and Janpances markets .
Our Principle : best price ,best quality ,best after-sales service
Our faith : Based on China , towards to the whole workd ,to be the international first-class brand .
parameter of this tin materials extrusion press
NO | Item | parameter | Remark |
1 | Main vat working power | 350T |
|
2 | Cylinder length(MM) | 450mm |
|
3 | Main motor power(KW) | 19 |
|
4 | Main vat working pressure (Mpa) | 21 |
|
5 | Advanced Speed(mm/s) | 80 |
|
6 | Withdraw Speed(mm/s) | 80 |
|
7 | Sub-motor power(KW) | 11 |
|
8 | Extruding heating power(KW) | 15 |
|
9 | Extruding heating temperature (°C) | 480 |
|
10 | lead billet size(MM) | 85X185 |
|
11 | Outlet wire dimension(MM) | any diameter per your request | 2 wire outlet |
12 | Extruding ratio | 25 |
|
13 | Extruding speed | 1-1.5mm/s | 60-90mm/min |
14 | Wire speed | 25-35mm/s | 1.5-2.1m/min |
15 | Extruding time per billet | 3min/pc |
|
16 | Output | 200kg/h |
|
Extruder head : adopt the H13 materials ,more durable with long span of life
Billet casting mould : can casting the billet before feeding into the extruder
Wire pay off : 2sets along with the machine
Our workshop for the lead pipe extrusion press
Our Main customers
why choose us ?
Our shipment
How to order this lead pipe extrusion press ?
