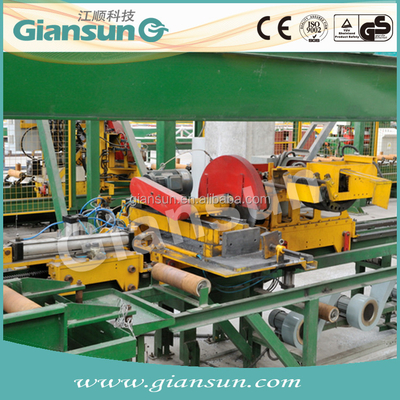

Single puller for aluminium profile extrusion press line
The QY series single puller is PLC controlled, with independent clamping device, driven by DC motor. It’s able to cut the profiles at welding mark without pausing the machine. The series has advantages of modern design, stable operation and huge pulling force etc.
Main features
1. Railway: use 30#H steel and 40 cold drawn square steel, which can improve the precision of railway, guarantee the working stability and promise the quality of profile.
2. Traction trolley: all components are machined to promise its precision and improve the manufacturing precision of the whole machine. Besides, it can improve its working reliability and working precision. It is also equipped with the hydraulic bumper to avoid accidental impacts.
3. Mechanism for clamping material: the supporting plate rise 90 degree to avoid damaging the profile when coming back. Curve design and reliable lock.Use the motor to control instead of the hydraulic system, so as to reduce the weight of the trolley and reduce brake impact when it comes back in a high speed; easy to maintain.
4. Traction power: adopt the special variable frequency motor to control speed and tension; two-stage adjusting speed can improve the controllability of back speed and reduce the impact.
5. Pulling mechanism: adopt the chains to pull the trolley, to prevent the puller from skidding.
6. Brake: adopt DC brake + Pneumatic brake, to strengthen the control of the puller.
7. Display: adopt human-computer interface to show the main parameter, information (e.g. tension length, speed) so as to adjust the length of aluminum billet on time, improve the ratio of finish product and make it easier to maintain.
8. Control: manual, automatic control. Cooperate with hot saw, the main machine and the roll-way to improve the degree of automation and save labor.
About us
Giansun Group is a high-tech enterprise which integrates R&D, design and production and specializes in providing extrusion dies, copper & aluminum profile production lines, extrusion press toolings, precision components, wind turbines and aluminum products.
In 2008, Giansun was honored a National high-tech company (No.GR200832000516).
Modernly designed, well-equipped and completely operating, the company covers an area of more than 90,000 square meters with more than 900 employees. Among them is a group of sophisticated technical engineers and management staff who are expert at designing, manufacturing, inspecting and managing. Our company has fully implemented the ISO9001 and ISO14001 standards. We have always been dedicated to manufacturing high quality products. Our company is contributing to environmental improvements with the goal of more harmony between human beings and nature.
Jiangyin Giansun Aluminum Profile Complete Plant Manufacturing Co., Ltd. is specialized in researching, developing and manufacturing
-extrusion presses,
-billet heating furnaces,
-die ovens,
-aging furnaces,
-single & double pullers,
-profiles handing systems
and other auxiliary equipments for aluminum press.
Giansun Aluminium Profile Complete Plant Manufacturing has a complete set of machining equipments, huge machining centers and other professional equipments, which play an impartment role in this Industry.
Certificates
PACKAGE:
Standard export carton packing.
50 days after receipt your payment (special reuquest available)
