Small Hydraulic Press
Structural Features
Rubber Hydraulic Press also named rubber vulcanizer, can provide press, high temperature, make more good rubber products to adapt to different working environment.
Mainly consists of three parts, the host, hydraulic station, electric control system.There are different types, such as column type, frame plate type,jaw type and so on, you can choose according to your rubber products.
The hot plate and plunger are all made of superior material ,they are accuracy processed and have high wear-resistance.Machine can be equipped with model pulling and pushing devices to reduce work strength based on product requirements.Hand control,electrical control and PLC control is optional.
About the moulds of hydraulic press, we also can produce, but we need the size and pattern.
Hydraulic Press Final products
Rubber tile, Rubber mat, O rings , Sealing ring , Rubber sheet, Rubber soles, Conveyor belt ,Solid tyre,Tyre flap and other rubber products if you have the mould.
Hydraulic Press
Hydraulic Press Technical parameters
| Type | 350*350*2 | 400*400*2 | 500*500*2 | 600*600*2 | 750*850*2 | 600*600*2 |
| Total pressure | 0.25 | 0.5 | 0.8 | 1 | 1.6 | 2 |
| Hot plate size | 350*350 | 400*400 | 500*500 | 600*600 | 750*850 | 600*600 |
| Number of working layer | 2 | 2 | 2 | 2 | 2 | 2 |
| Piston diameter(mm) | ¢150 | ¢200 | ¢250 | ¢300 | ¢360 | ¢400 |
| Stroke of piston (mm) | 250 | 250 | 250 | 250 | 500 | 300 |
| Plate daylight(mm) | 125 | 125 | 125 | 150 | 250 | 150 |
Unit area pressure of hot plate(Mpa) | 2.1 | 3.1 | 3.2 | 2.78 | 2.5 | 5.6 |
| Power(KW) | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 3 |
| Overall size(L*W*H)(mm) | 1500*400* | 1800*500* | 1800*550* | 2000*700* | 2000*1000* | 2550*960* |
| 1350 | 1700 | 1600 | 1700 | 1900 | 2100 | |
| Weight(kg) | 1000 | 1500 | 2000 | 2600 | 4300 | 5000 |
Also we can provide all kinds of sizes, types, and operation ways according to the customer's request.

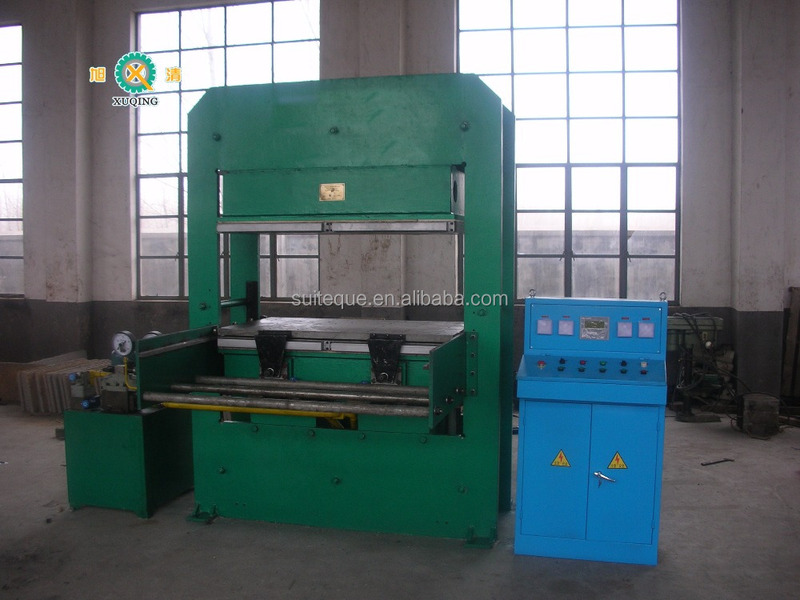

Frame Type Vulcanizing Press Machine
Conveyor belt vulcanizing press
Hydraulic Press Packing and Transport
Service after sales
1. One year quality guarantee and long-term technical support.
2. We can train your workers for free. If you need, we can install and assemble the machine in your workshop. And you should pay for the necessary costs, according to the international trade.
Welcome to visit our factory and we'll show you the best machine and service!
Contact Bonnie for quotation now:
Bonnie Zhang
Qingdao Suiteque Machinery co.,Ltd
Address:Tieshan Industrial Park,jiaonan District,Qingdao City,
Shandong Province,China
Postcode:266400
Website:www.qdxuqing.com
Alibaba Website:http://suiteque.en.alibaba.com/
Cell phone:+8615092093091
QQ:329201642
About our company
Qingdao Suiteque Machinery Co.,Ltd is located in the west coast of Qingdao city. It is a professional enterprise that committed to the production and development of automatic complete sets of inner tube and tire equipment of motorcycles,
bicycles,electric cars series.
Our products have been sold to Southeast and Middle Asia, the Middle East, South Africa and North America.
