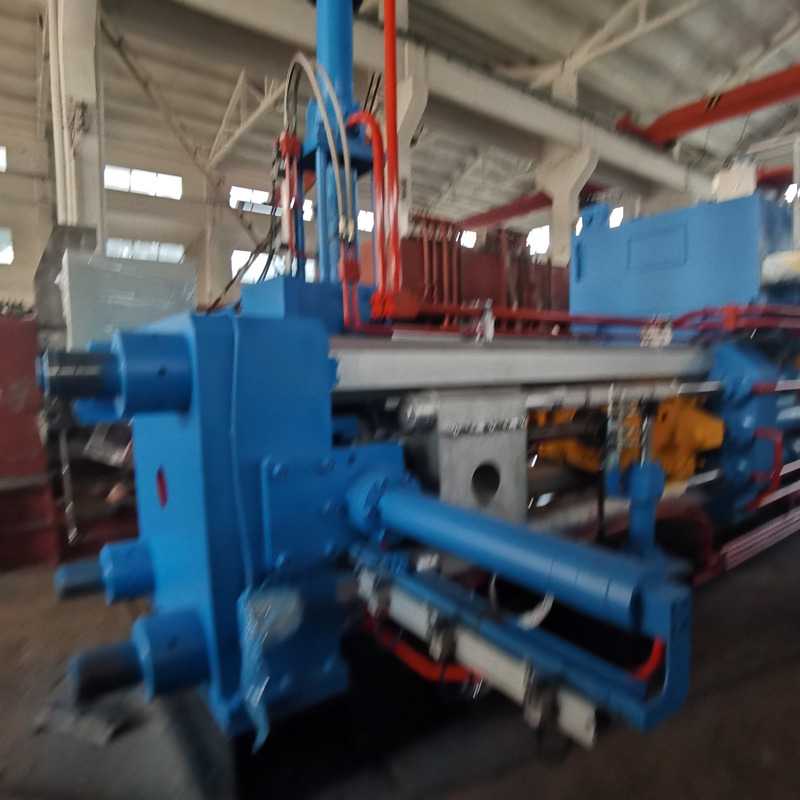

Purpose: This series equipment is suitable for aluminum and aluminum alloy extruded pipe, rod, row, wire and other products. Features:
1. The whole structure with four-poster horizontal, set on the tank. Has the structure of new, neat, easy to maintain.
2. Moving beam using four-point positioning, center adjustable, tool and die design and reasonable can greatly reduce the production costs.
3. Can set different extrusion process, using dynamic and fixed pin mode with extruded tubes with different pore sizes.
4. Using a large flow of hydraulic cartridge valve system, good sealing performance, low temperature rise.
5. Electrical Parts MITSUBISHI and SIEMENS PLC products, sensitive and reliable.
|
Type |
Working pressure of hydraulic system |
Bore dimensions of extruding cylinder |
Main cylinder material |
|
XJ-300 |
21-23MPa |
Φ75×350 |
Forged steel |
|
XJ-500 |
21-23MPa |
Φ75-80 ×400 |
Forged steel |
|
XJ-630 |
21-23MPa |
Φ90-Φ100×400 |
Forged steel |
|
XJ-800 |
21-23MPa |
Φ100-Φ120×550 |
Forged steel |
|
XJ-1100 |
21-23MPa |
Φ127×600 |
Forged steel |
|
XJ-1250 |
21-23MPa |
Φ152×650 |
Forged steel |
|
XJ-1650 |
21-23MPa |
Φ152-Φ178×750 |
Forged steel |
|
XJ-1800 |
21-23MPa |
Φ178-Φ203×800 |
Forged steel |
|
XJ-2000 |
21-23MPa |
Φ203-Φ228×850 |
Forged steel |
|
XJ-2500 |
21-23MPa |
Φ228-Φ265×900 |
Forged steel |
|
XJ-3000 |
21-23MPa |
Φ255-Φ305×1000 |
Forged steel |
